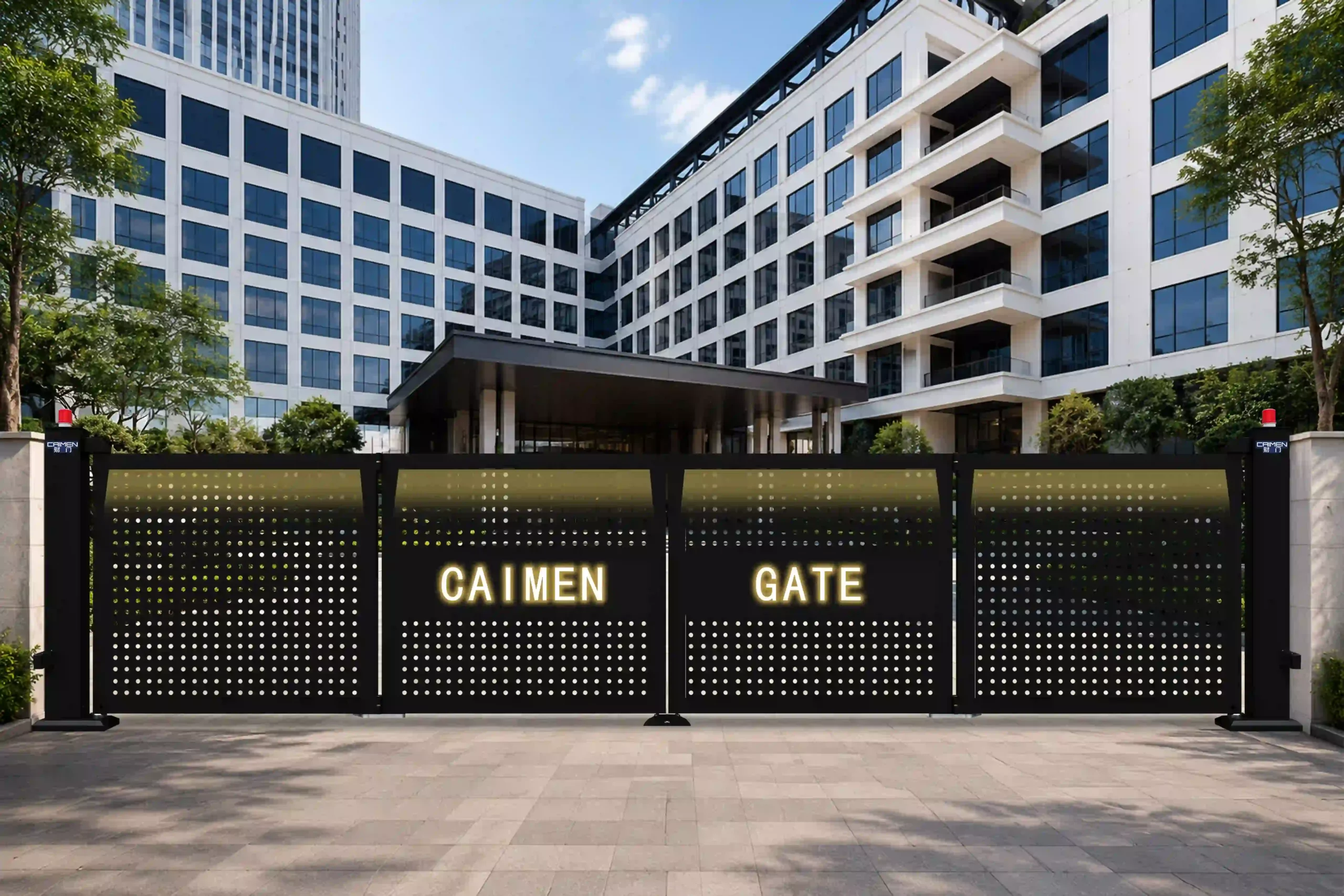

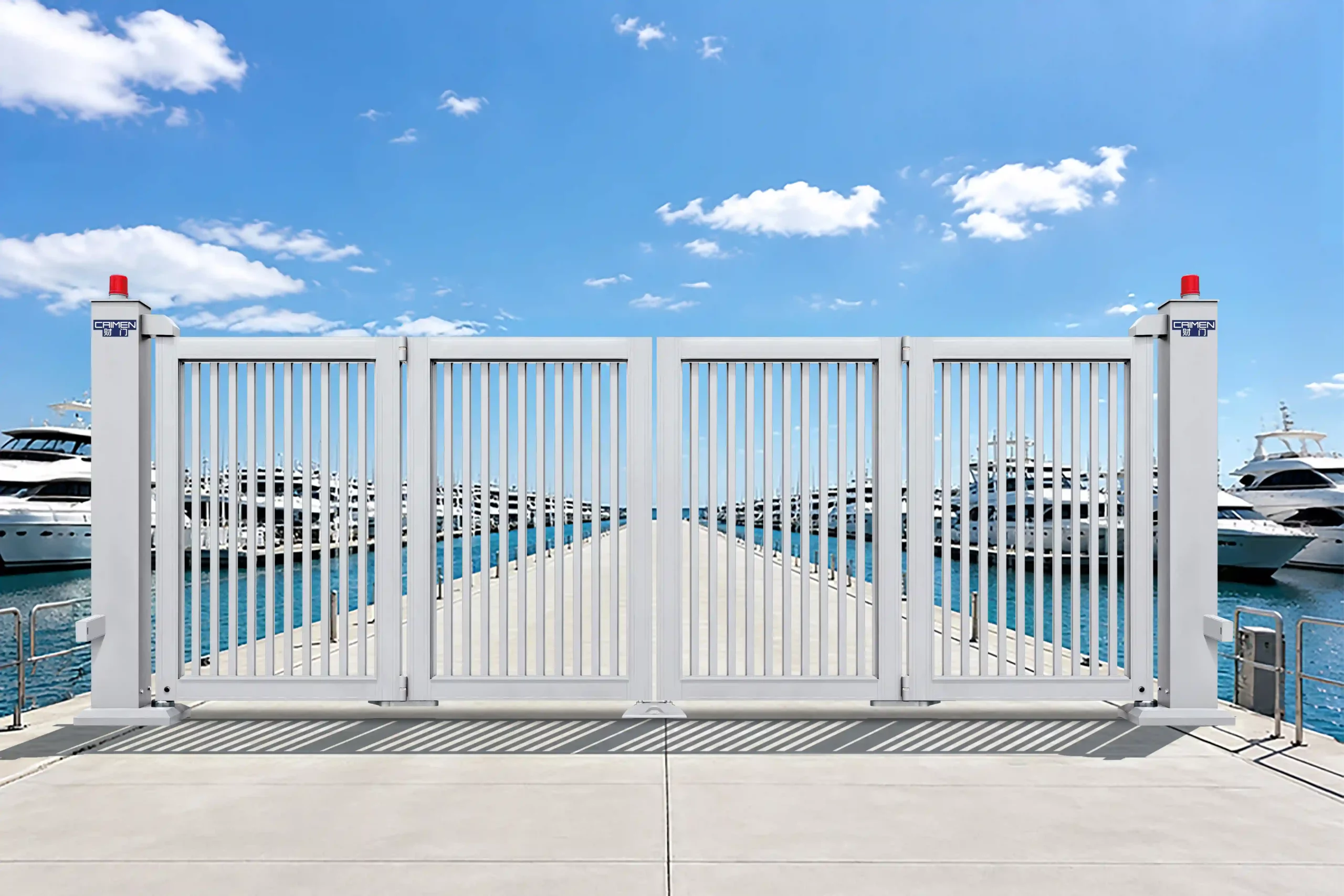

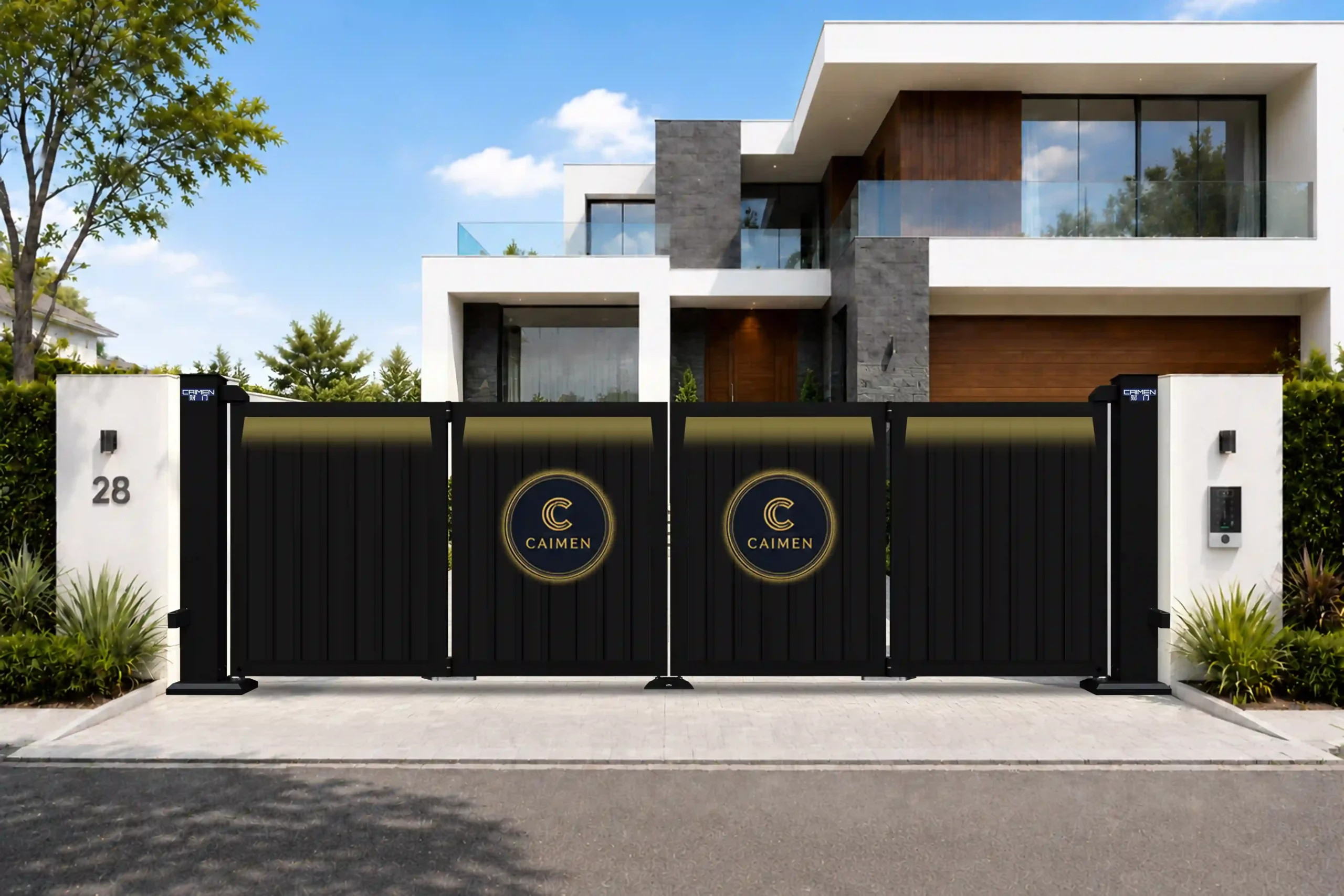

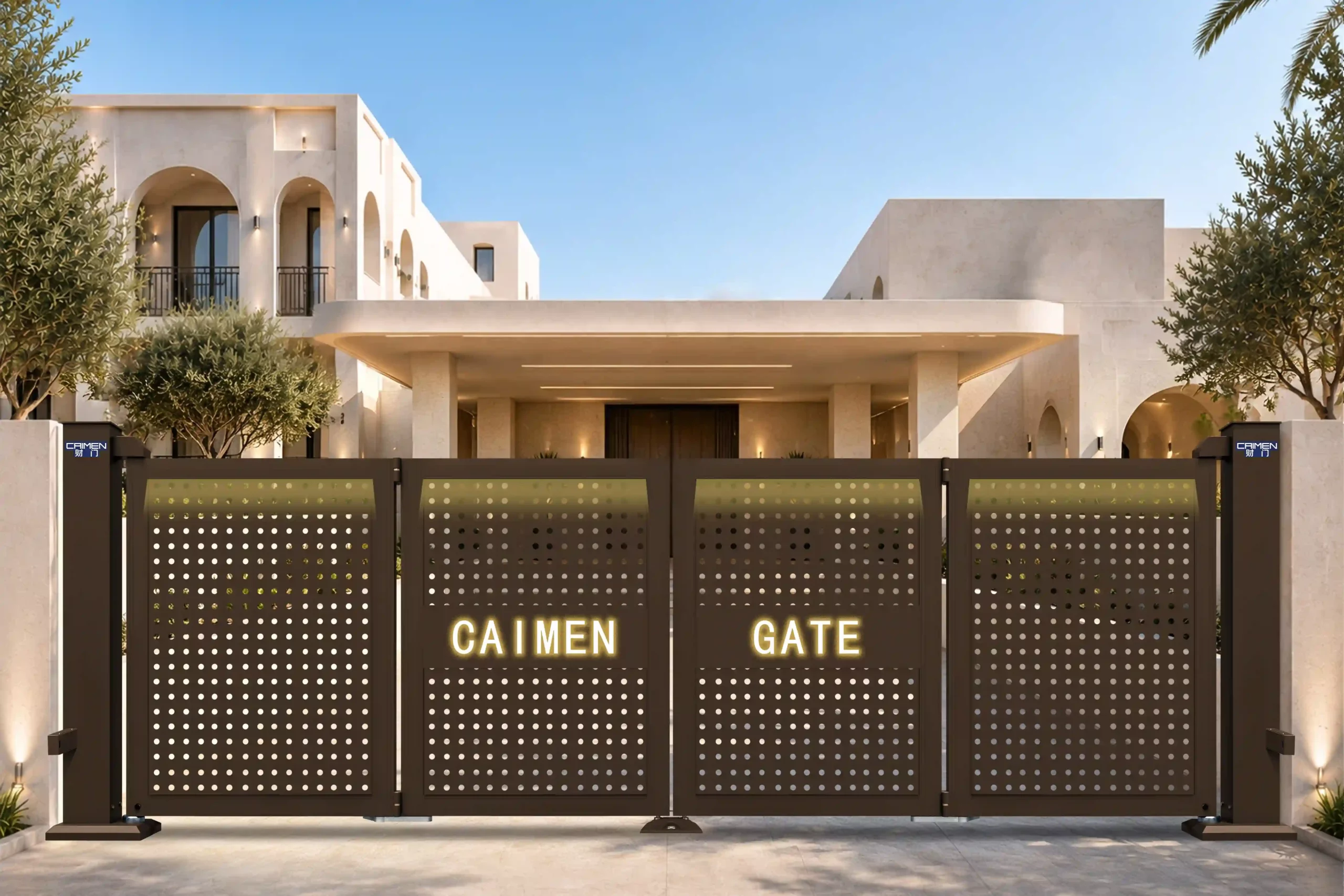

Bifolding Gate
Applications:
Residential
Industrial
Public Facilities
Commercial
Key Features:

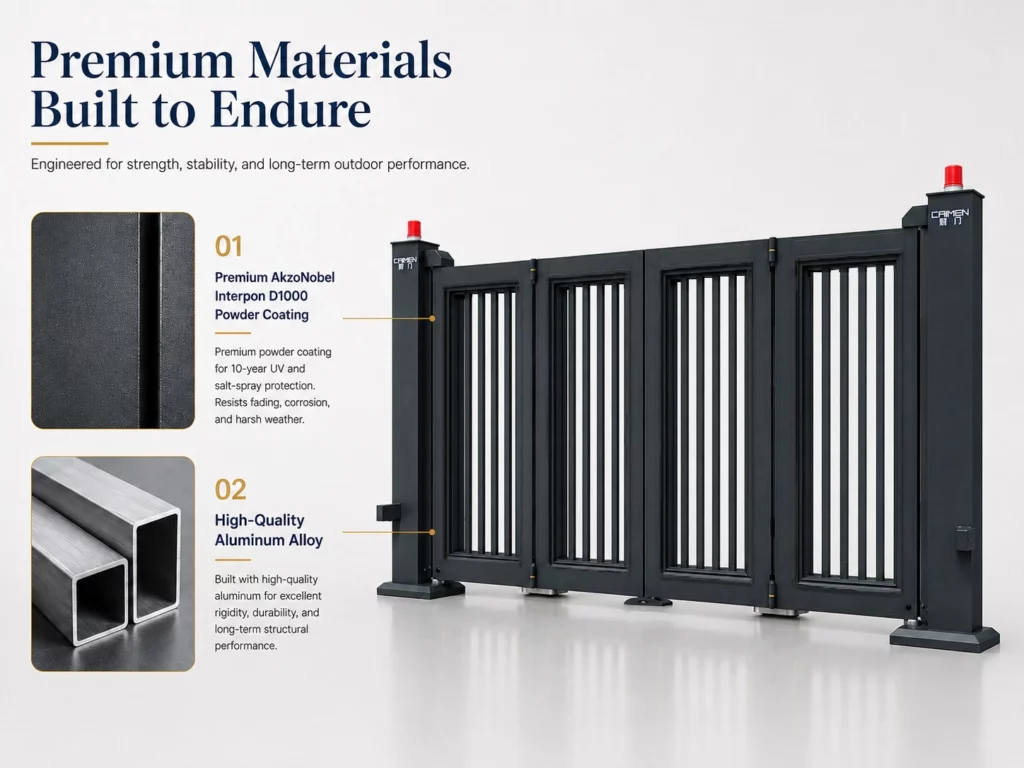

Premium Materials & Long Term Durability
Built with high strength aluminum and AkzoNobel Interpon outdoor powder coating, providing excellent weather resistance, UV protection and corrosion resistance for long-term outdoor performance.

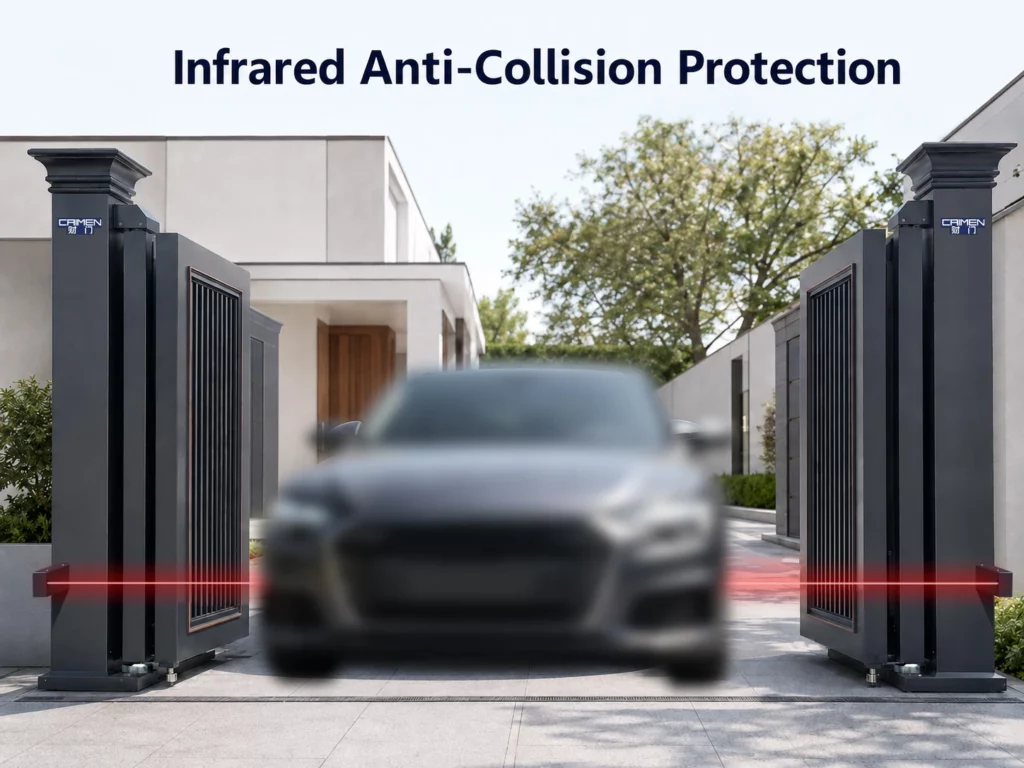

Intelligent Infrared Anti-Collision Protection
Real-time obstacle detection automatically stops and reverses gate movement, providing reliable protection for vehicles and pedestrians.

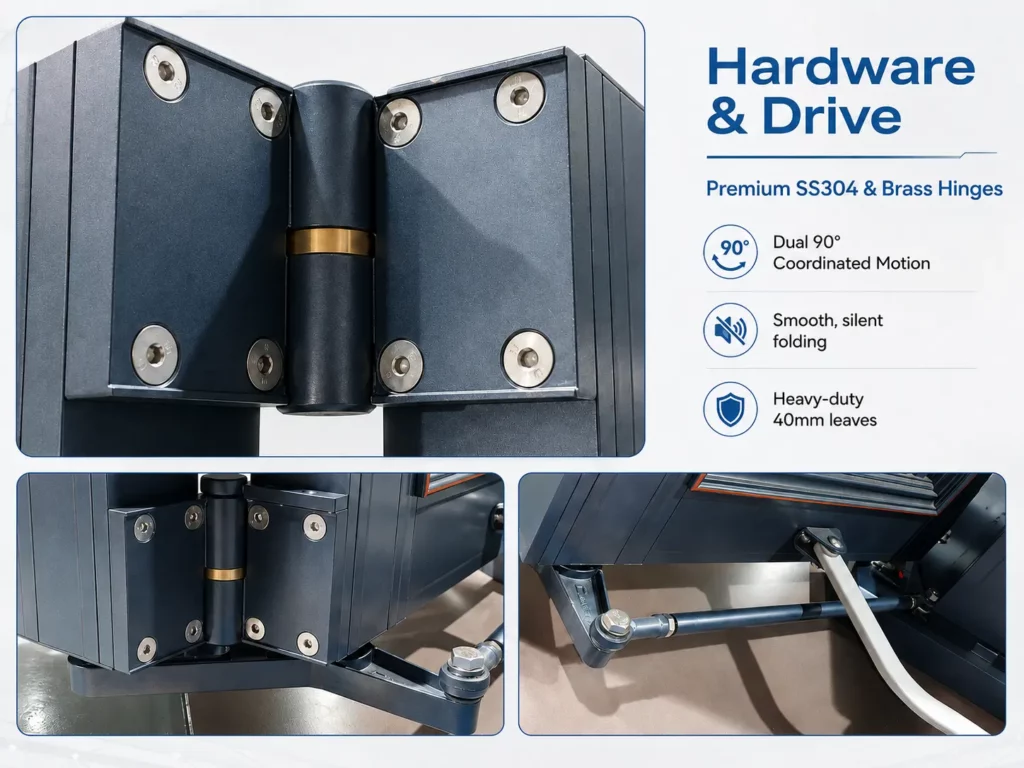

Patented Top Bottom Axis Support System
CAIMEN’s patented design distributes gate weight through top guidance and bottom load bearing support for superior stability and smooth operation.

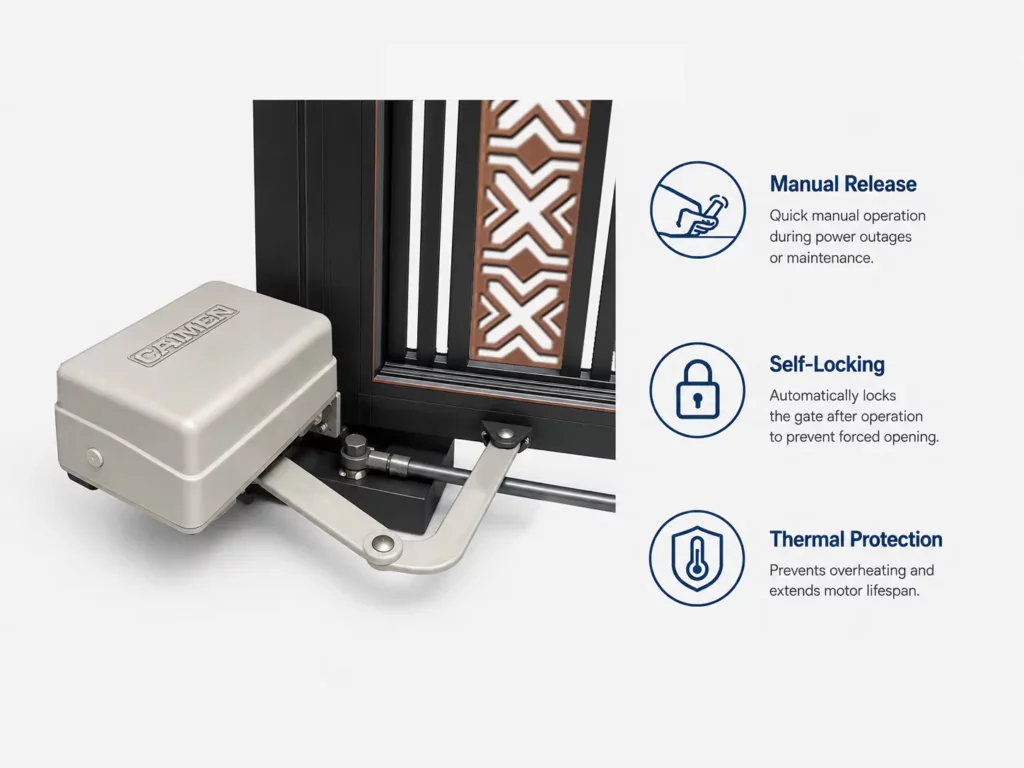

Reliable Motor Safety & Protection
Provides emergency manual operation, secure self-locking and thermal protection for safe, stable and long-lasting gate performance.

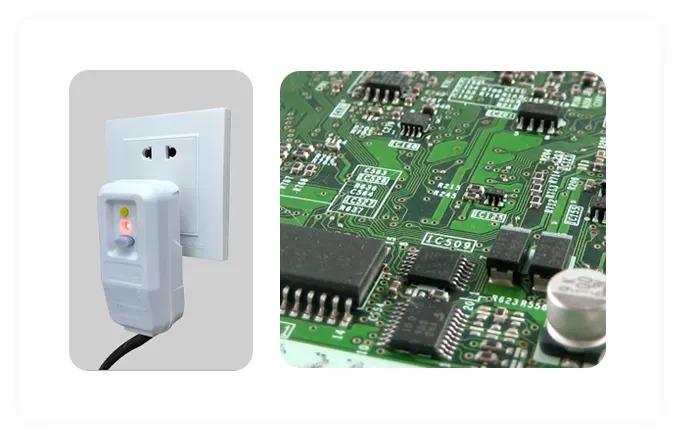

Enhanced Safety Protection
10mA leakage detection with <0.1s automatic power cut-off. Flame-retardant material ensures safer operation.
10th Gen Smart Control System
Faster response, better smart device compatibility, and seamless AI interaction.
Supports Intelligent Interactive System Integration
 |
 |
 |
The schematic diagram takes one of the models as an example and is for reference only.
| Name | Cabinet | Main Frame | Inner Frame | Stand Tube | Gate Decoration part |
| Material | 6005-T5 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 |
| Size mm | 250*200* Thickness 4.0 | 128*90* Thickness 3.2 | 110*50* Thickness 1.5 | 47*37* Thickness 1.3 | AL Casting |
| Insulation Grade | B |
| Production Grade | A |
| Surface Treatment | Fluorocarbon powder coating |
| Color | CM-01 gray (customizable) |
| Function Configuration | |||
| Function | Standard/Optional | Function | Standard/Optional |
| Motor Thermal Protection | Standard | Soft Drive Device | Standard |
| Manual Clutch | Standard | Emergency Stop Device | Standard |
| Infrared | Standard | Radio Remote Control | Standard |
| Voice | Optional | Anti-climbing Teeth | Optional |
