Turning Sectional Sliding Gate

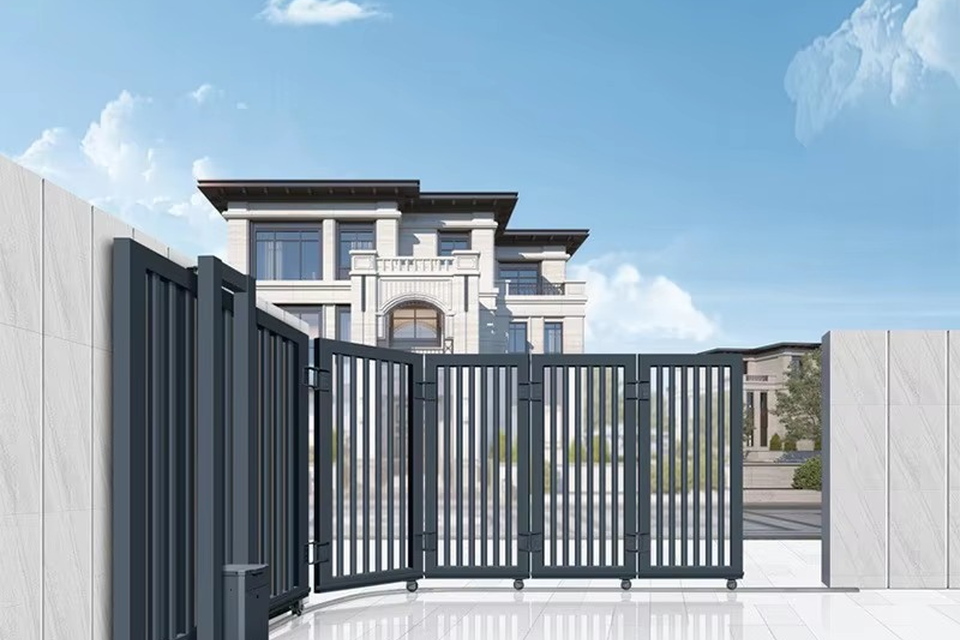

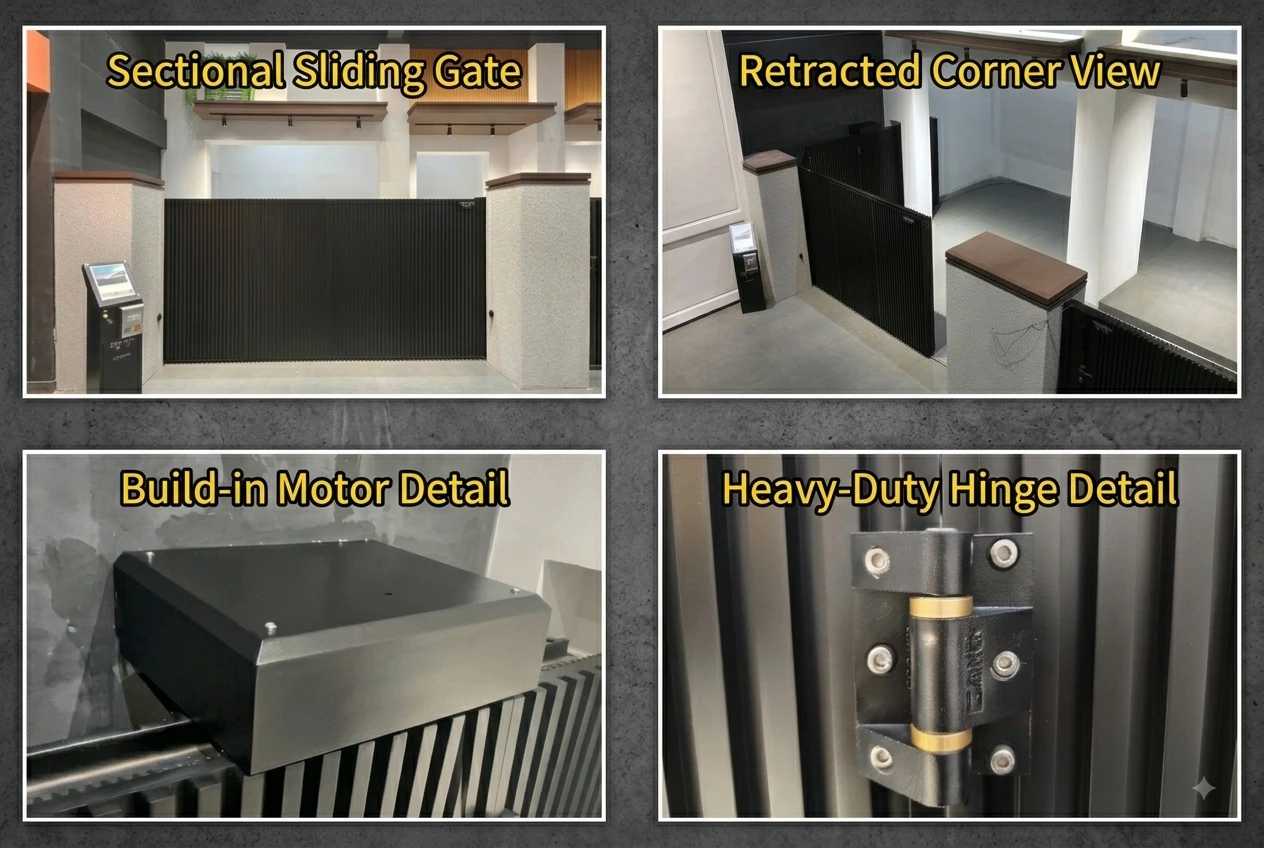

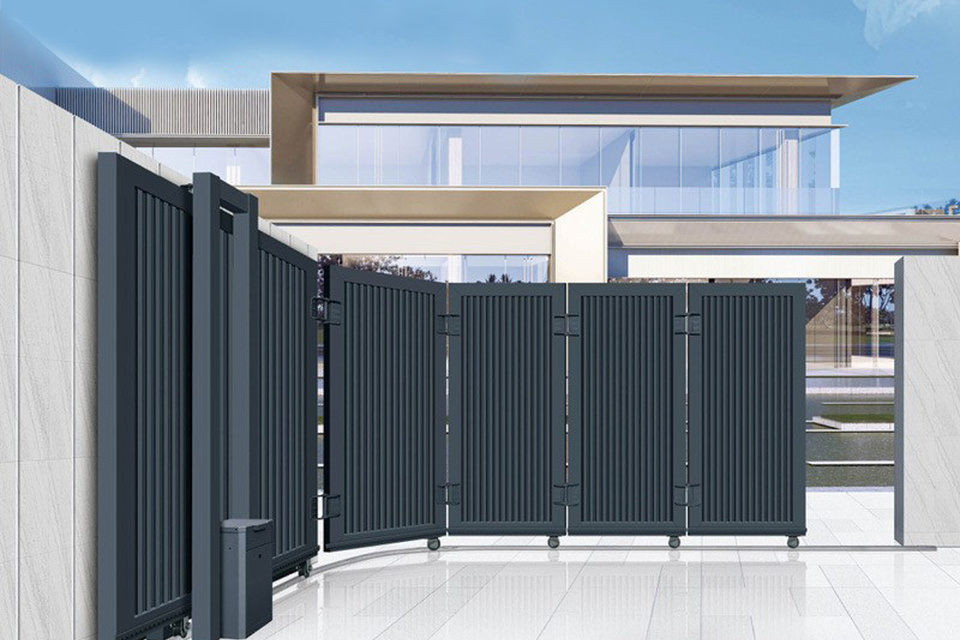

Designed for entrances where swing gates or conventional straight sliding gates cannot fit, the CAIMEN sectional sliding gate uses hinged aluminium panels that follow a curved track and park neatly along the side wall.

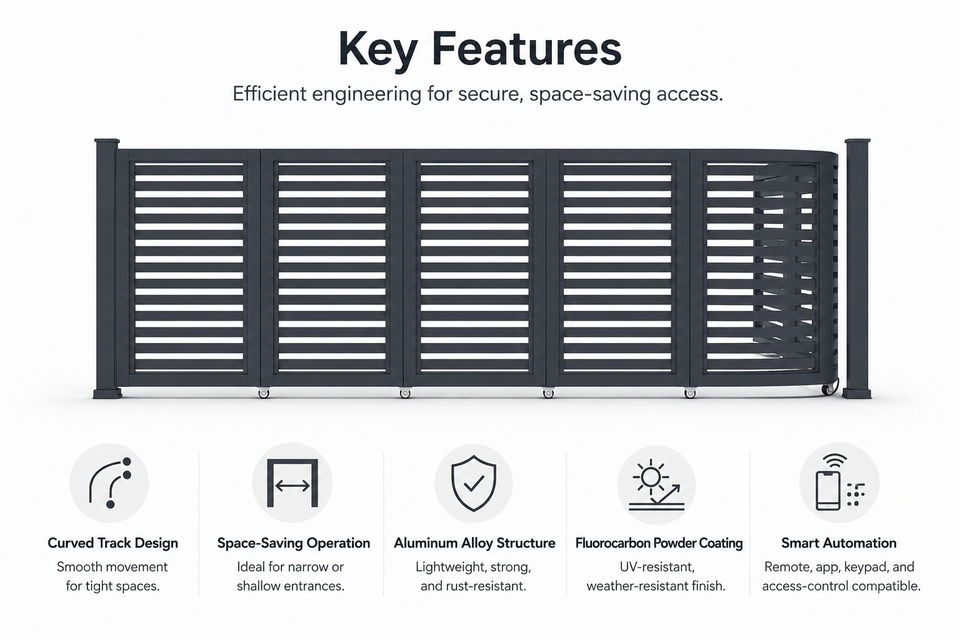

Key Features:
1. Unique track design
Users can benefit from a curved sliding track because it allows the gate body to move along the predesignated curved track, thus making it ideal for confined residential areas with obstacles on the gate sides or wall-mounted installations.
The horizontal sliding turn mechanism allows the gate body to move sideways against the wall, thus creating additional room and preventing contact with objects.
2. Space saving
No need for the front and back space of traditional sliding gates, especially suitable for narrow or insufficient depth areas (such as garages, community entrances).
The gate body transfers entirely within its allocated space next to the gate, which maintains unrestricted access to both the outside road and pedestrian areas.
3. Automation and Intelligence
The motor drive enables users to control the gate through remote control and passwords, including fingerprints, mobile phone applications, or smart home systems.
High-quality motors along with pulleys eliminate noise during operation, which allows their usage at night and within residential areas.
The optional features list includes lighting fixtures and cameras with license plate recognition technology.
4. Beautiful and customizable

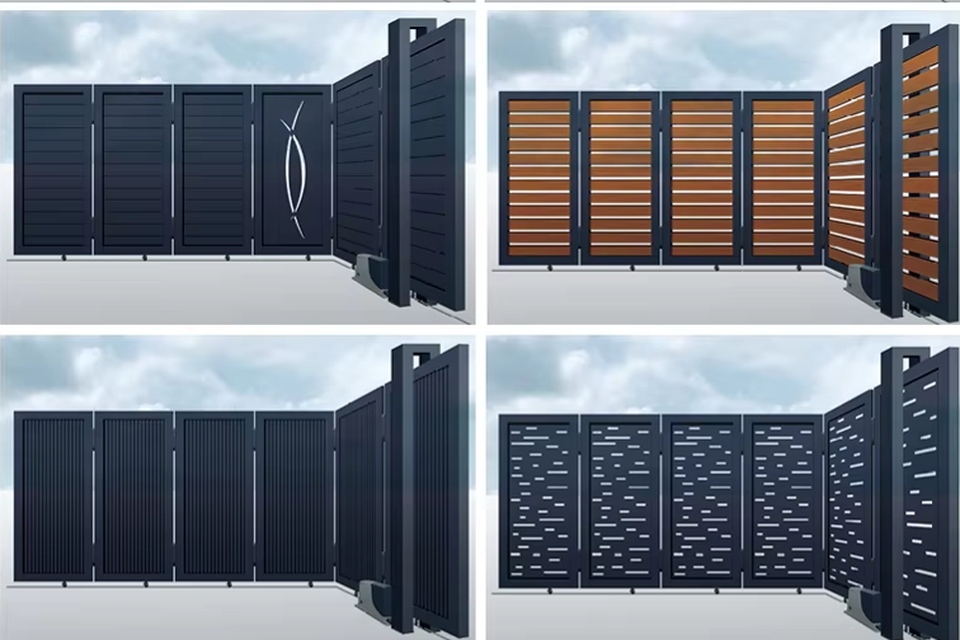

The gate panels offer customizable combinations of different colors and textures, which enable them to match architectural designs.
The gate panels enable transparent design options between hollow construction and fence panels for both ventilation and privacy requirements.
Ideal Applications:
- Residential Properties & Villas
- Commercial Complexes & Driveways
- High-End Garages or Courtyards
- Industrial Zones with Curved or Narrow Entrances
- Areas with Limited Backroom for Traditional Gates
Benefits:
- Flexible layout for complex entrances
- Maximizes access space while minimizing structural footprint
- Enhances property appearance and value
- Smooth, quiet, and secure operation
- Easily integrated with access control and safety systems

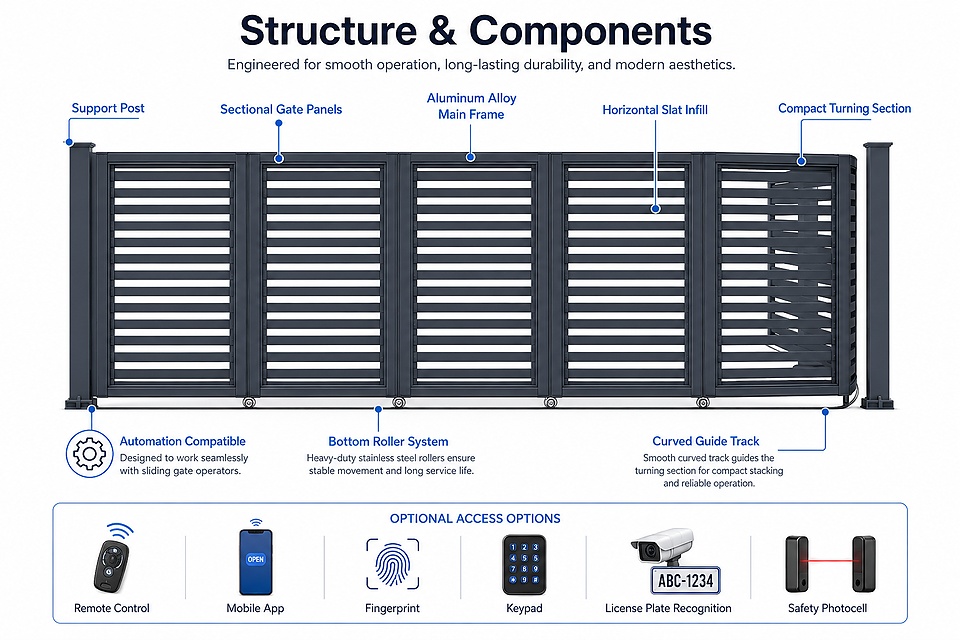

All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.
| Name | Main Frame | Inner Frame | Stand Tube |
| Material | 6005-T5 | 6063-T6 | 6063-T6 |
| Size mm | 95*63* Thickness 3.0 | 59*27* Thickness1.8 | 47*37*1.3 |
