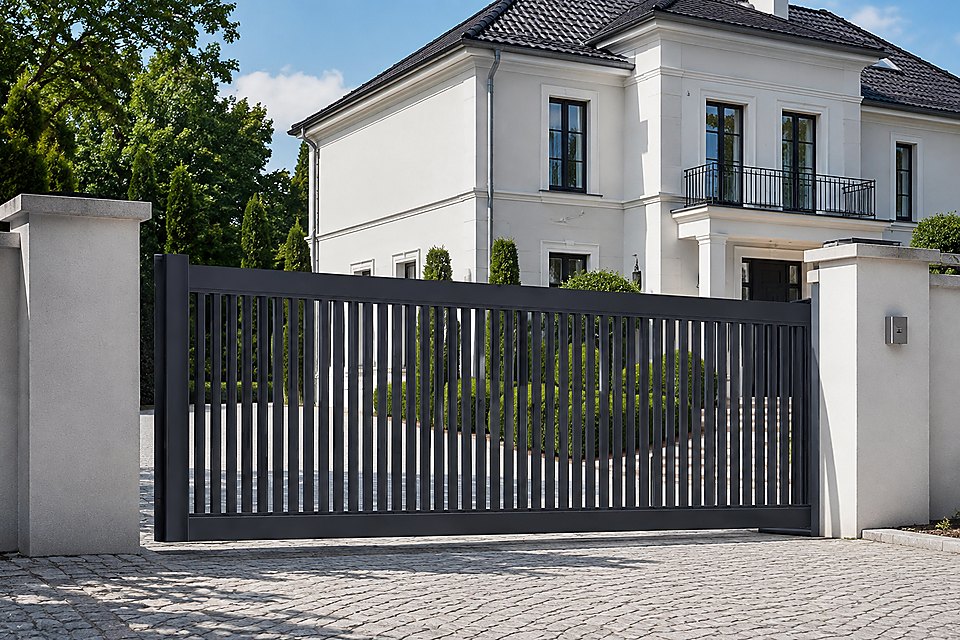

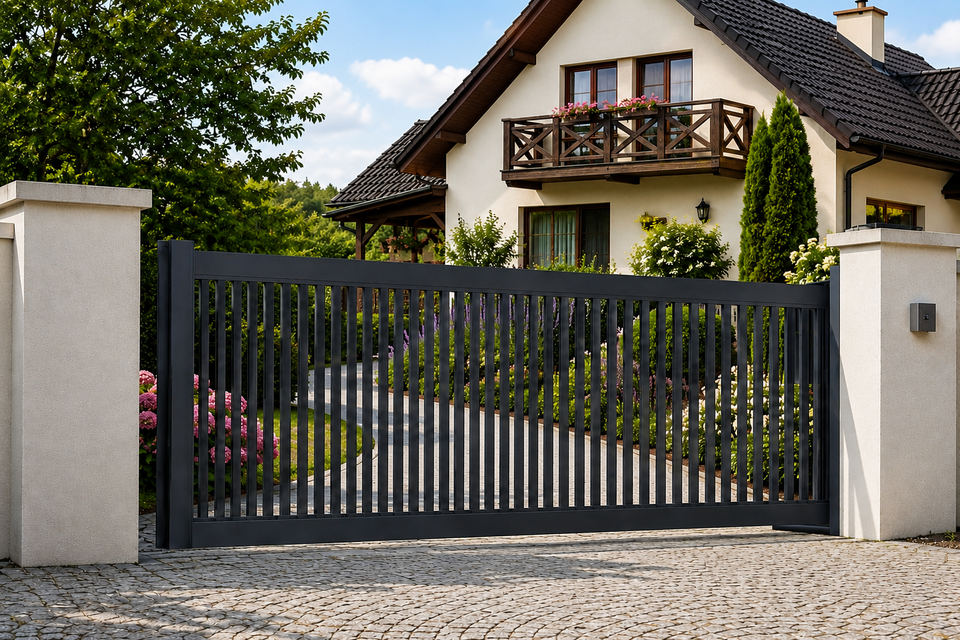

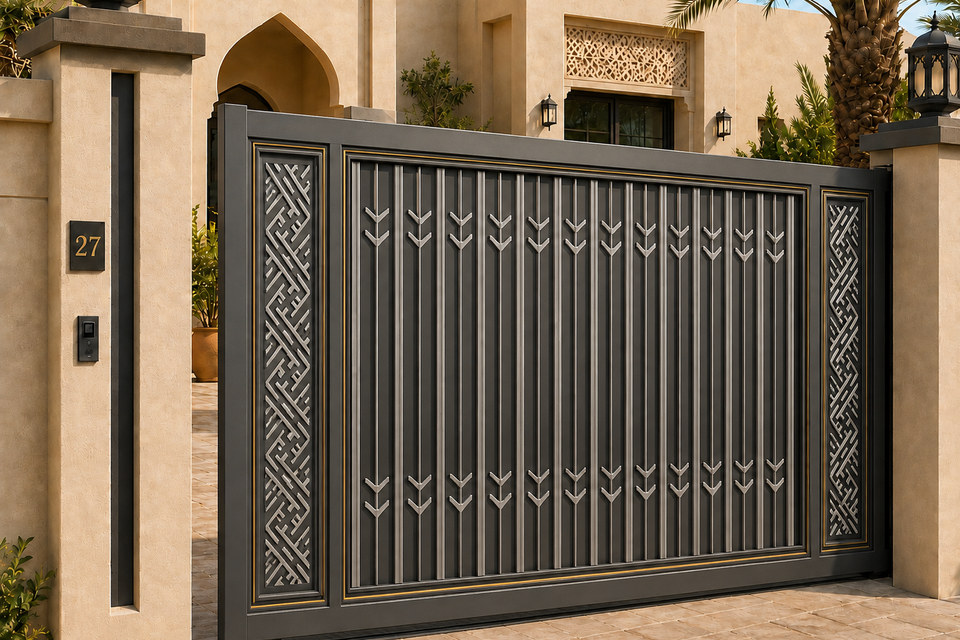

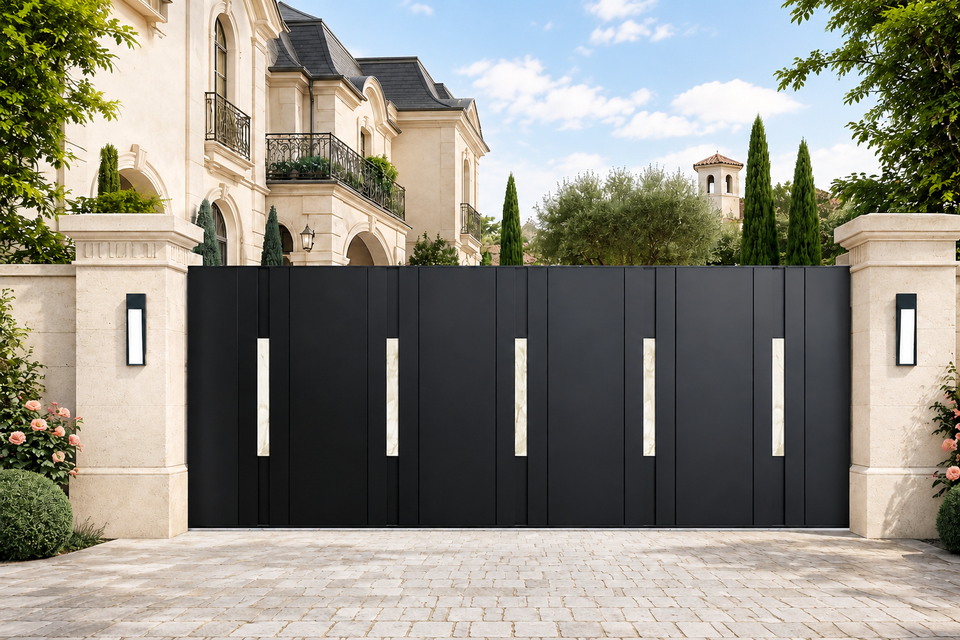

Automatic Aluminum Sliding Gate
A space-saving automatic entrance solution for villas, private residences and courtyard driveways, available in custom sizes, colors and access-control configurations.
Key Features:
1.Space-Saving Opening
The gate slides horizontally along the boundary and requires no inward or outward swing area.

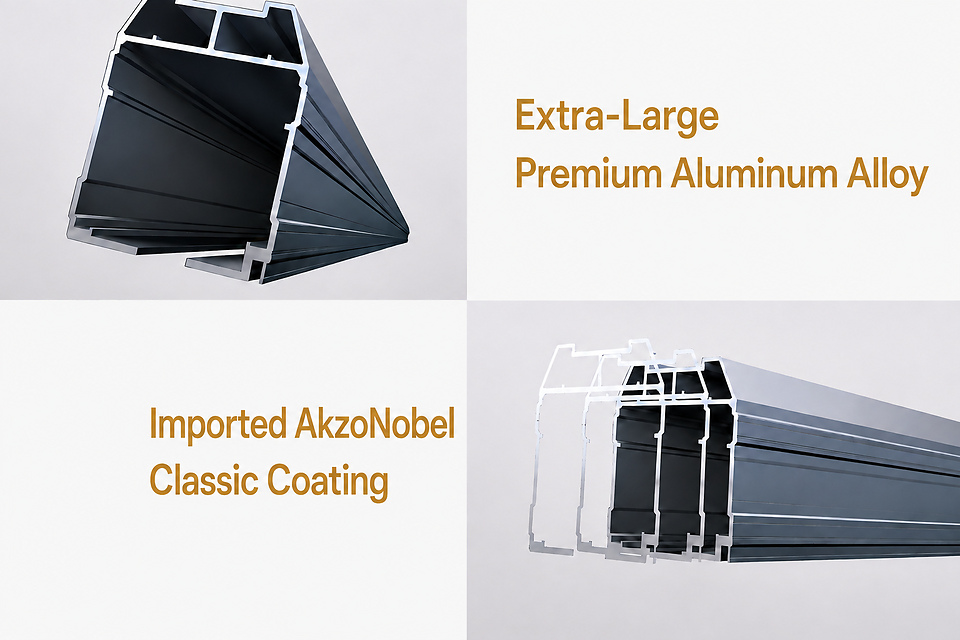

2. Durable Aluminum Structure
High-strength aluminum profiles provide corrosion resistance and reliable outdoor performance.
3. Smooth and Stable Movement
Guide wheels, correction wheels, and limit sensors help maintain straight and stable gate movement.
4. Multiple Safety Protections
Designed to prevent collisions and eliminate pinch hazards.
-
🛜 Infrared Beam Sensors — Create an invisible photo-electric barrier; automatically stop and reverses gate movement upon detecting obstacles.
-
🛡️ Pressure-Sensitive Safety Edges — Built-in tactile rubber edges along the frame that trigger instant emergency stopping upon physical contact.
-
🛑 Emergency Stop Button — High-visibility industrial kill-switch for immediate power shut-off during critical situations.

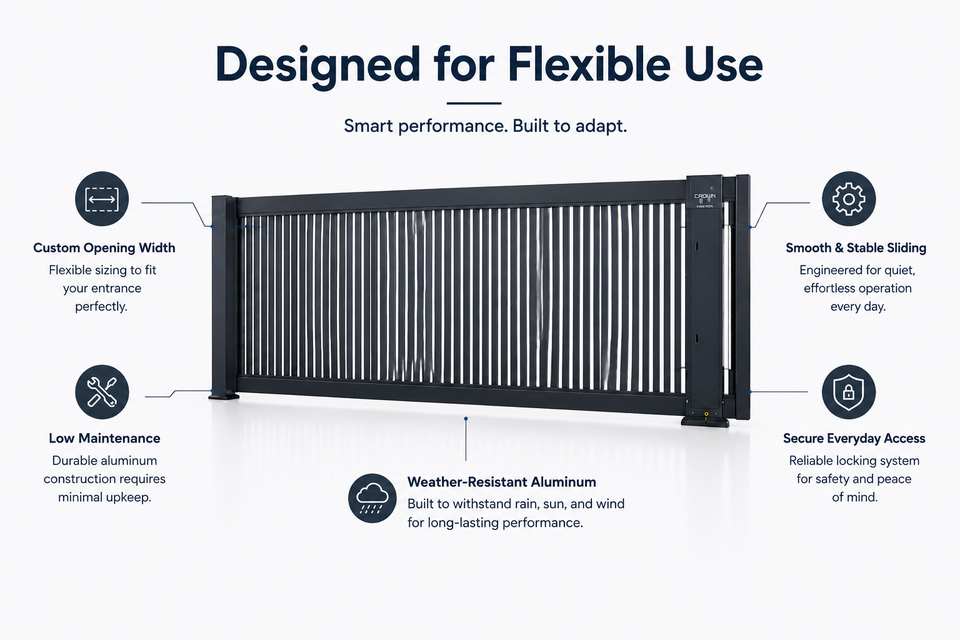

5. Flexible Access Control
The gate can be operated using remote controls and connected to compatible access control systems.
Products Can Be Connected to the Intelligent Interactive System
Why Choose CAIMEN？
- Factory-direct manufacturing
- Custom gate design and engineering support
- Aluminum profile processing capability
- Motor and control system integration
- Pre-assembly and operation testing
- Packaging and export experience
- Installation drawings and technical support
All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.
| Name | Top Beam | Bottom Beam | Gate Pull Rod | Auxillary Gate Frame | Main Gate Pillar | Vertical Bar | Gantry |
| Material | 6005-T6 | 6005-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 |
| Size mm | 113*93* Thickness 2-6 | 302*213* Thickness 7.0 | 21 Hexagon | 80*40* Thickness 2.0 | 80*80* Thickness 3.0 | 47*37*Thickness 1.3 | 150*100* Thickness 3.0 |
| Insulation Grade | B |
| Product Grade | A |
| Surface Treatment | Fluorocarbon Powder Coating |
| Product Color | CM-01 Gray (Customizable) |
| Function Configuration | |||
| Function | Standard/Optional | Function | Standard/Optional |
| Motor Thermal Protection | Standard | Soft Drive Device | Standard |
| Manual Clutch | Standard | Emergency Stop Device | Standard |
| Scrolling Display | Optional | Radio Remote Control | Standard |
| Anti-collision Airbag | Standard | Gantry | Standard |
| Infrared Alarm | Standard | Anti-pinch | Standard |
| Anti-climbing Teeth | Optional | Voice | Standard |
