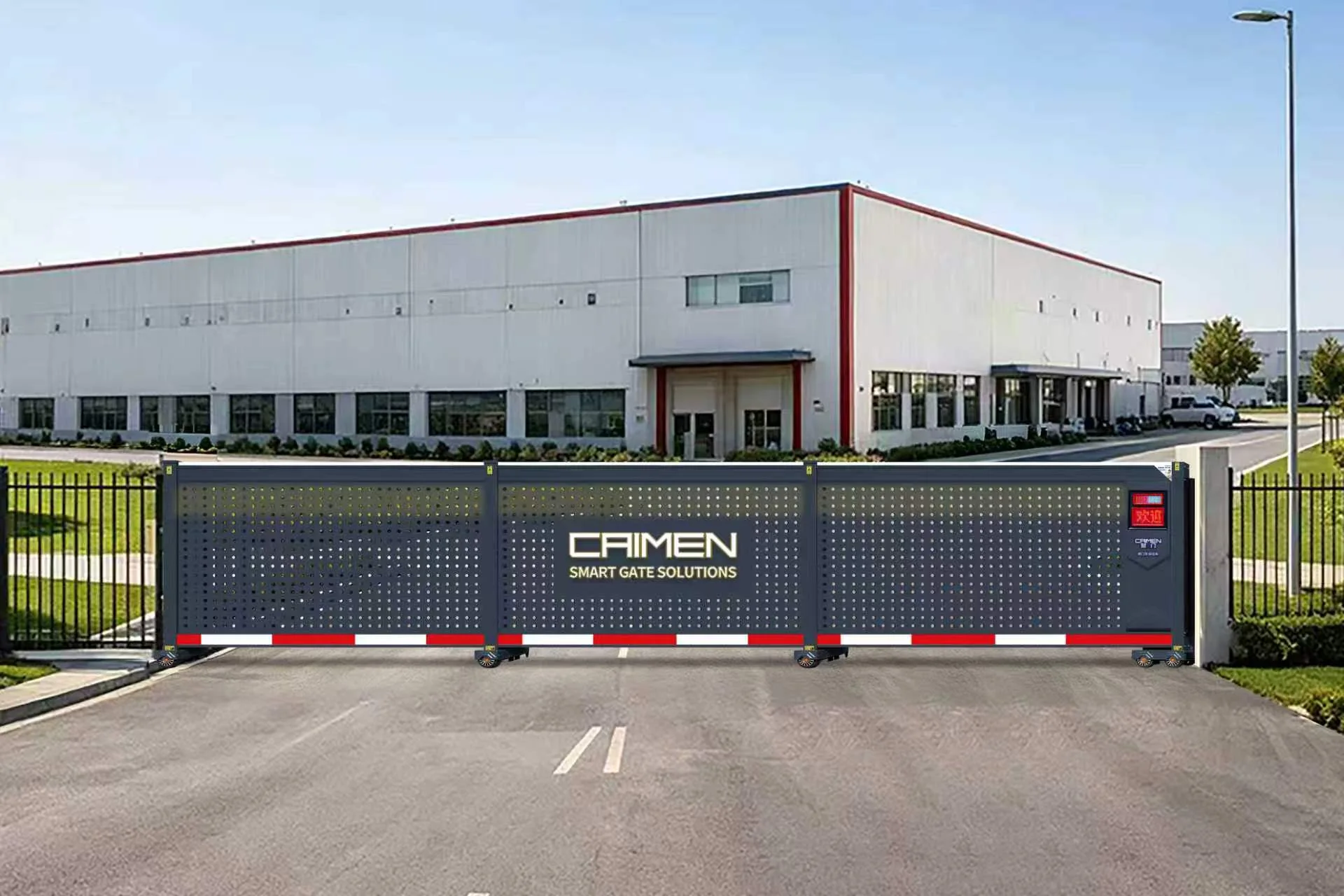

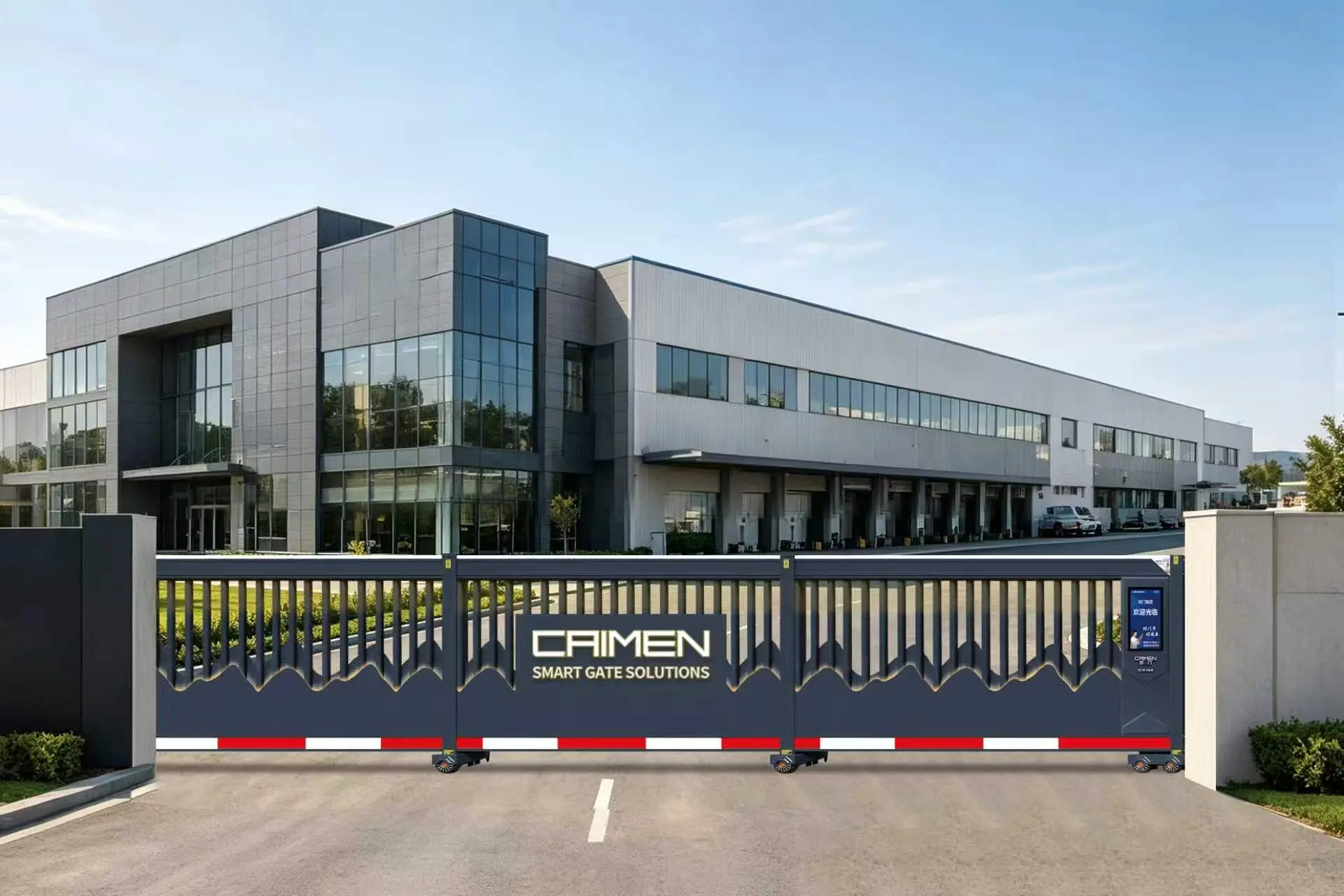

Telescopic Sliding Gate
Overview & General Specifications
| Specification | Value | Specification | Value |
| Brand | CAIMEN | Material | High-Grade Aluminum Alloy |
| Product Category | Complete Automatic Gate Set | Manufacturing Process | Casting & Precision Extrusion |
| Opening Method | Automatic Drive | Frame Panel Thickness | 4 mm |
| Surface Treatment | Fluorocarbon Powder Coating | Standard Color | CM-01 Gray (Customizable) |
| Insulation Grade | Grade B | Product Grade | Grade A |
| Customization | Supported (Size & Color) | Applications | Residential, Courtyards, Villas & Industrial Sites |
Function Configuration
| Intelligent Function | Status | Intelligent Function | Status |
| Motor Thermal Protection | Standard | Soft Drive Device | Standard |
| Manual Clutch | Standard | Emergency Stop Device | Standard |
| Scrolling Display Screen | Standard | Radio Remote Control | Standard |
| Anti-Collision Airbag | Optional | Gantry Structure | Optional |
| Infrared Alarm Sensor | Optional | Anti-Pinch Protection | Optional |
| Anti-Climbing Teeth | Optional | Voice Prompt Function | Optional |
Five Core Advantage:

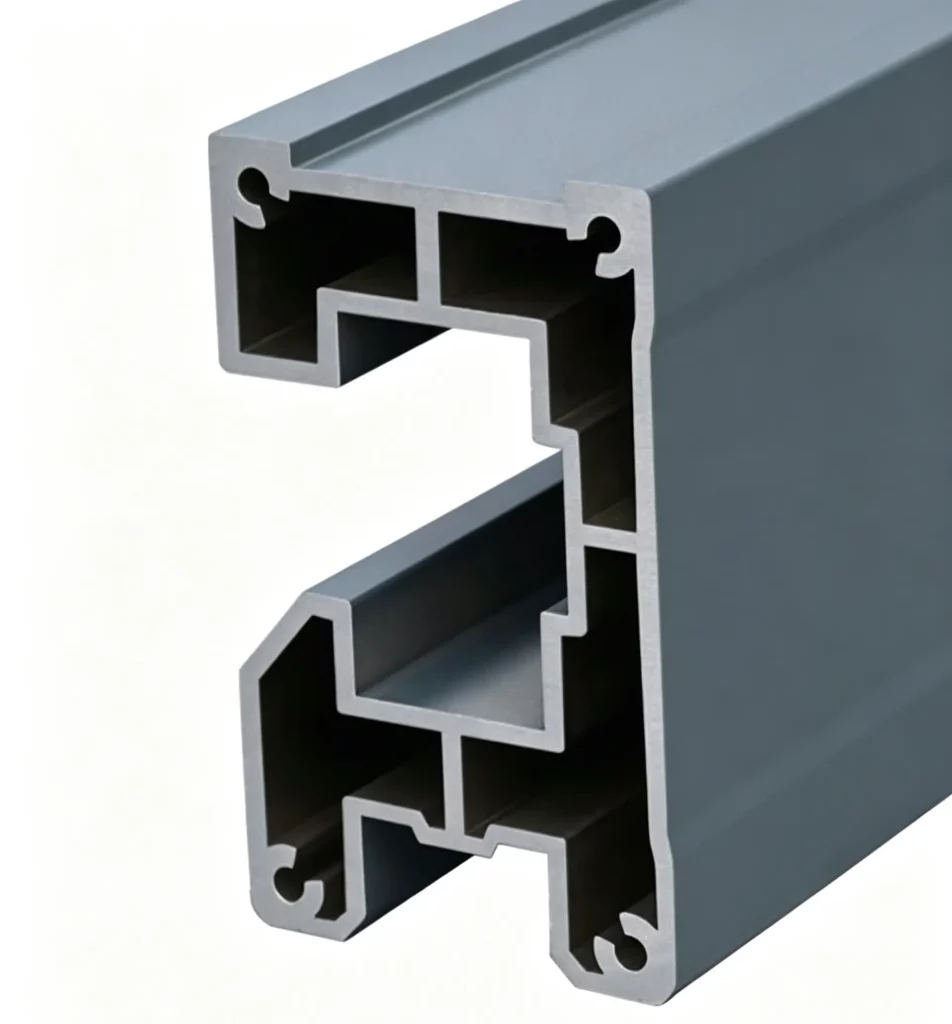

1.Gate Body Structure Modular Full Aluminum Construction
Stronger Durability & Longer Service Life
The gate body adopts a fully assembled aluminum alloy structure, eliminating traditional welding processes and utilizing modular assembly technology. The overall structure provides uniform force distribution, excellent wind resistance, and strong deformation resistance. With natural anti-rust and anti-corrosion properties, it remains stable and durable even under long-term outdoor conditions.
Individual components can be easily disassembled, replaced, and maintained, significantly reducing future maintenance costs. The premium appearance and superior structural performance ensure a service life far beyond conventional gate systems.

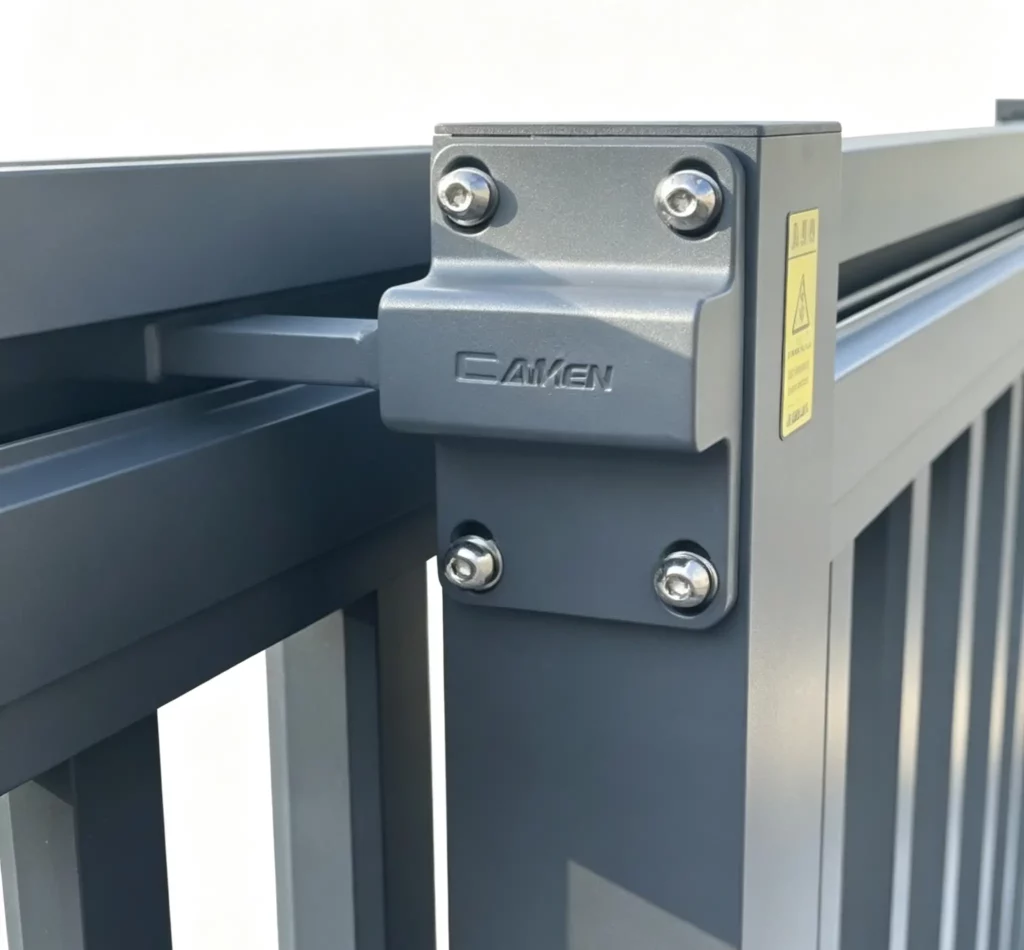

Integrated Stainless Steel Cable Guide Bracket
The integrated one-piece structure provides enhanced stability, ensuring tight engagement between gate sections and smooth linear movement. The cable system operates with zero friction, preventing cable wear and electrical leakage while improving safety and long-term reliability.

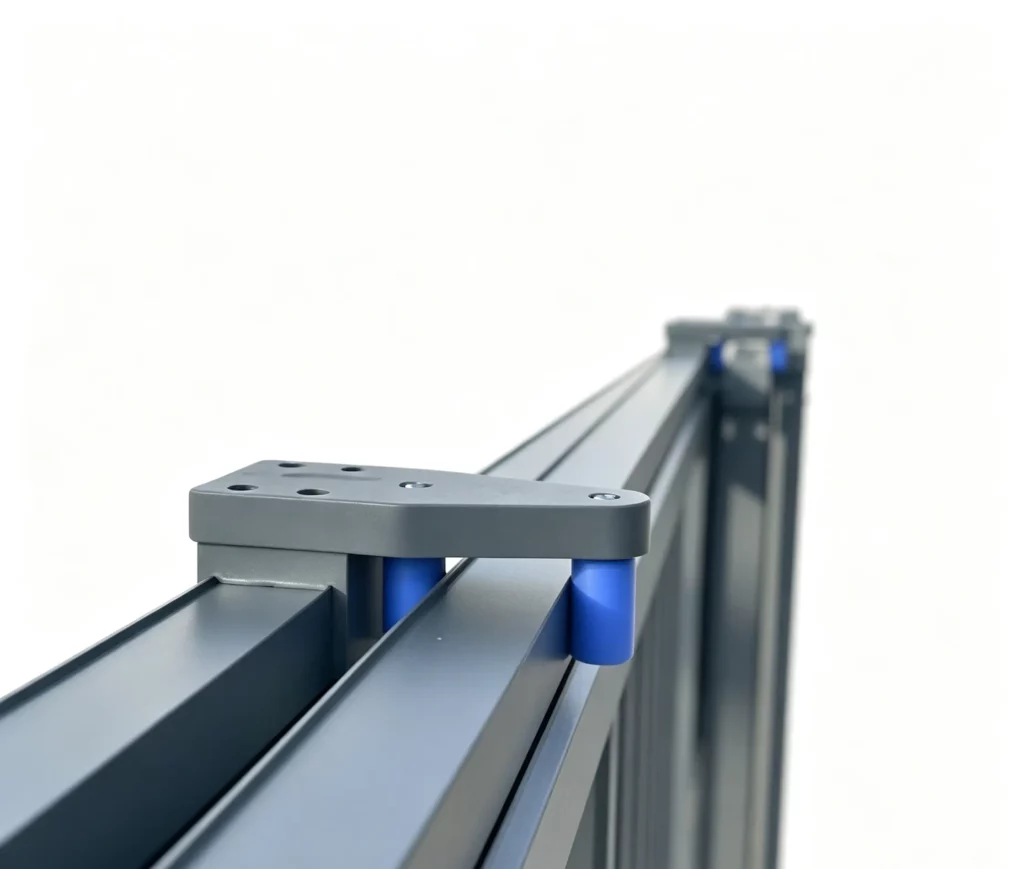

Upper Linear Guidance System
The top of the gate is equipped with an interlocking linear guide structure. Both sides feature guide rollers with built-in stainless steel bearings, providing smooth and wear-resistant operation.
The system effectively controls the gate movement path, preventing deviation or tilting and ensuring straight, stable, and precise opening and closing operations.
2.Base Chassis System | Stable Foundation with Load Bearing, Wind Resistance & Automatic Correction
Physical Linkage Self-Correction Structure
Through the coordinated operation of bottom support rollers, traveling wheels, and anti-wind components, each gate section is mechanically interconnected to form a closed-loop correction system.

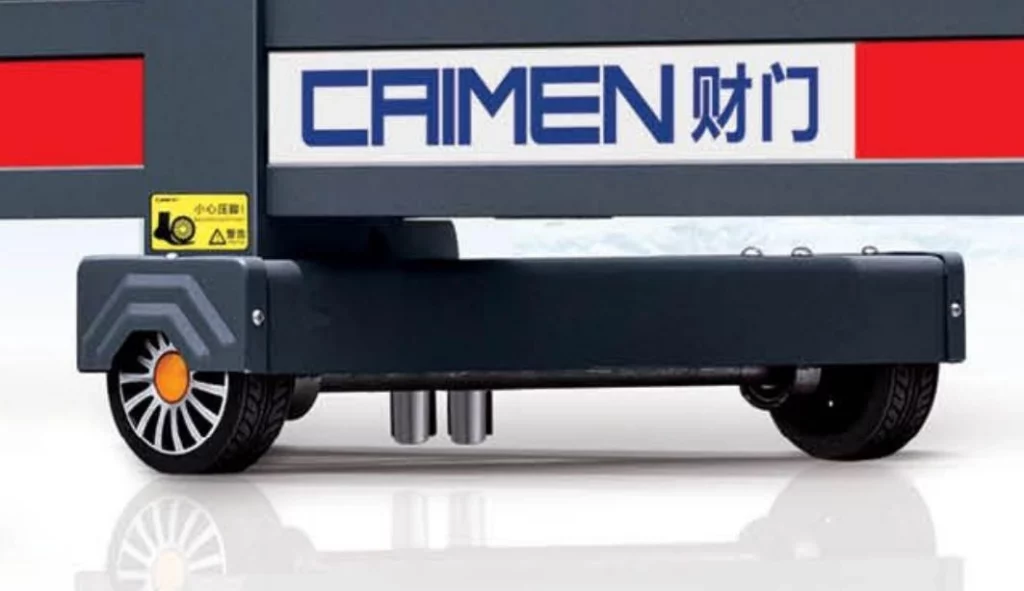

Dual-Side Dual-Wheel Drive Chassis
The left and right dual-wheel load-bearing design provides stronger support capacity and balanced power output.
Combined with built-in wind-resistant components, the chassis maintains close contact with the track system, effectively resisting strong wind impact and preventing gate shaking or displacement.
Adaptive Floating Load-Bearing Support Rollers
The support rollers firmly carry the gate body weight and distribute the load effectively.
When encountering uneven ground surfaces or height differences, the floating structure automatically adapts to changing conditions. Together with the correction system, it reduces operational resistance, impact, and component wear.

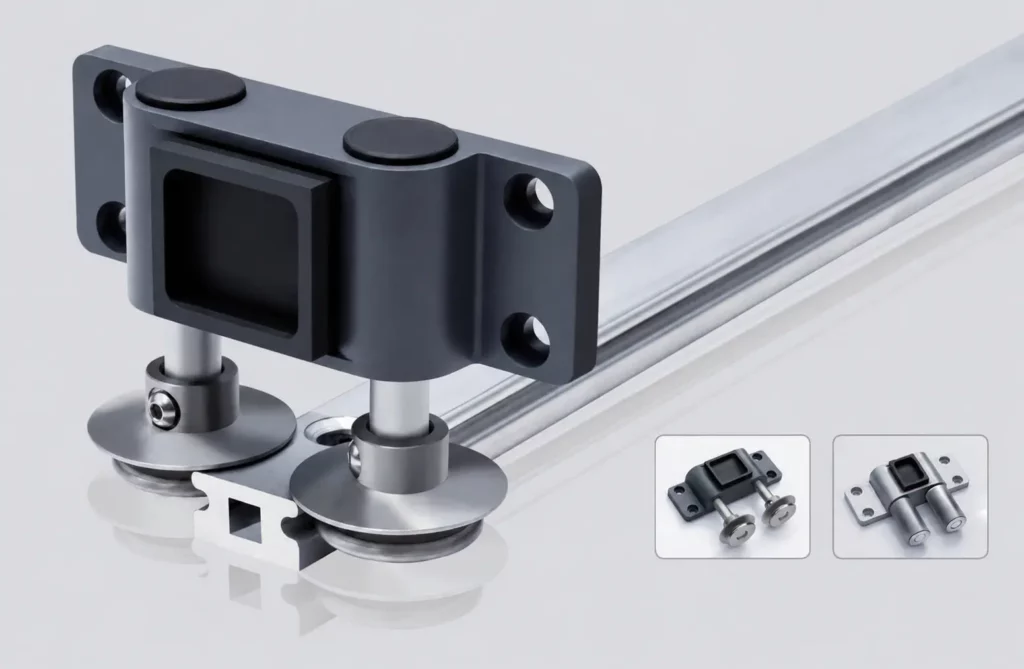

Premium 304 Stainless Steel Anti-Wind Hook
Made from high-quality 304 stainless steel, the anti-wind hook features four original stainless steel bearings inside, providing excellent corrosion resistance, dust protection, load capacity, and durability.
The flexible structure follows the gate movement while securely locking onto the track, preventing derailment or vibration even in strong wind conditions, ensuring safe and stable operation.

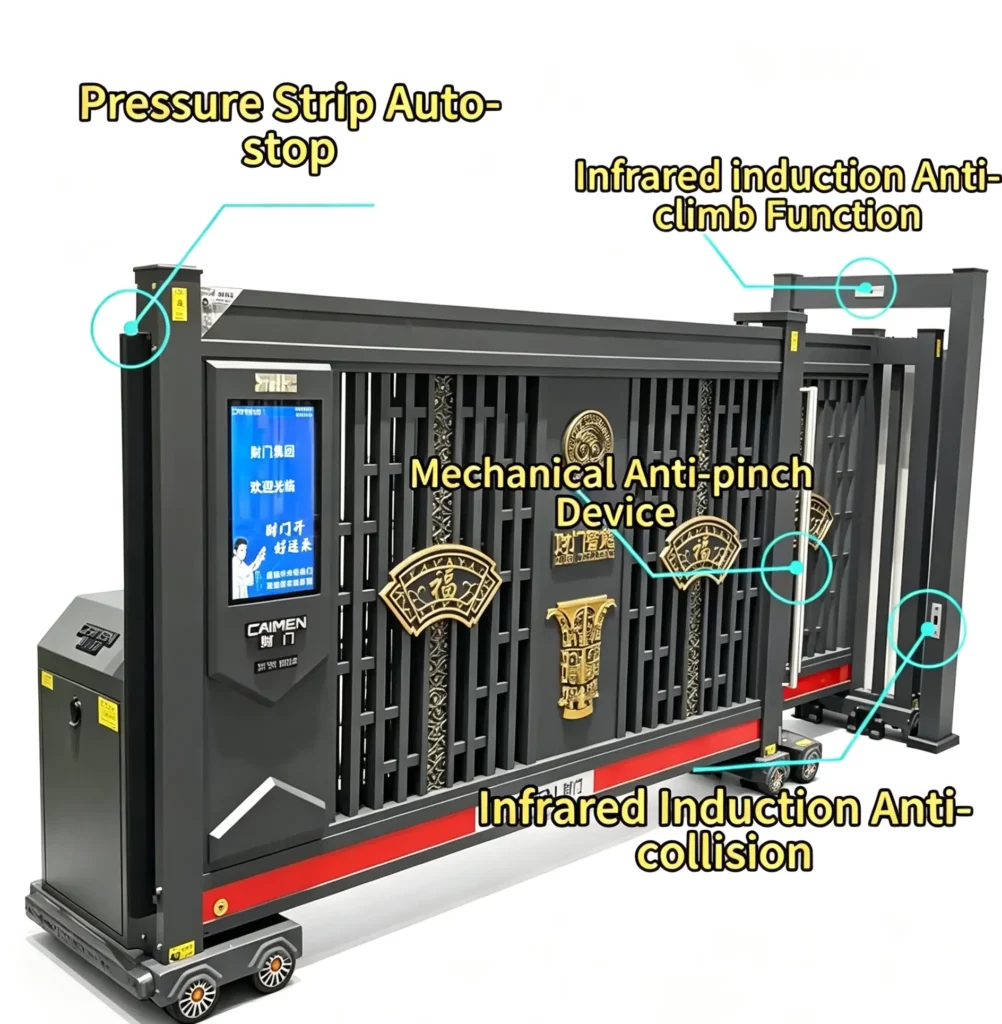

3.Comprehensive Safety Protection System | Multi-Layer Protection for Safe Access
Flexible Safety Airbag Anti-Pinch Protection
A flexible safety airbag is installed at the front end of the gate sections. The highly sensitive sensor system immediately detects contact with pedestrians, vehicles, or obstacles, triggering automatic rebound and shutdown.
The soft cushioning protection effectively prevents hard collisions and impact injuries, providing a safer and more user-friendly protection experience.
Mechanical Anti-Pinch Safety Device
The gate is equipped with an additional anti-pinch safety protection system. Mechanical anti-pinch devices are installed on both sides of the gate body.
During opening or closing operation, if a person or object comes into contact with the anti-pinch bar, the gate will immediately stop running to prevent injury or damage.
Front & Rear Infrared Safety Detection Gantry System
Safety detection gantries are installed at both the front and rear ends of the gate. Each gantry is equipped with three pairs of infrared detection sensors.
The lower infrared sensors provide anti-collision monitoring, while the upper infrared sensors detect climbing or unauthorized intrusion attempts.
The full-area infrared monitoring system provides comprehensive safety coverage without blind spots, delivering a high-standard security protection solution.

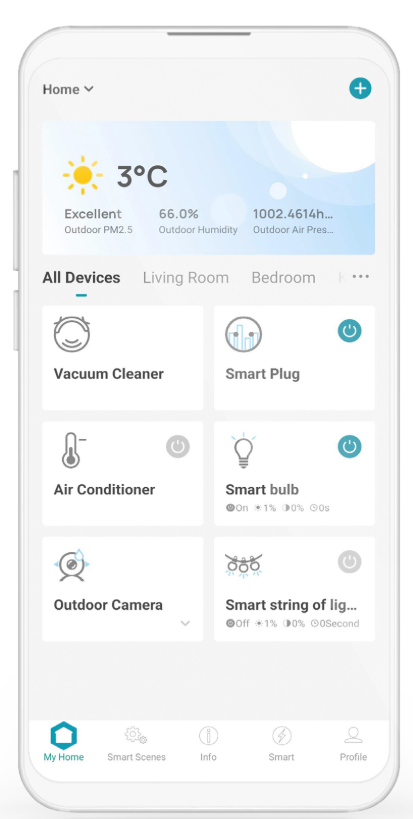

4.Products Can Be Connected to the Intelligent Interactive System

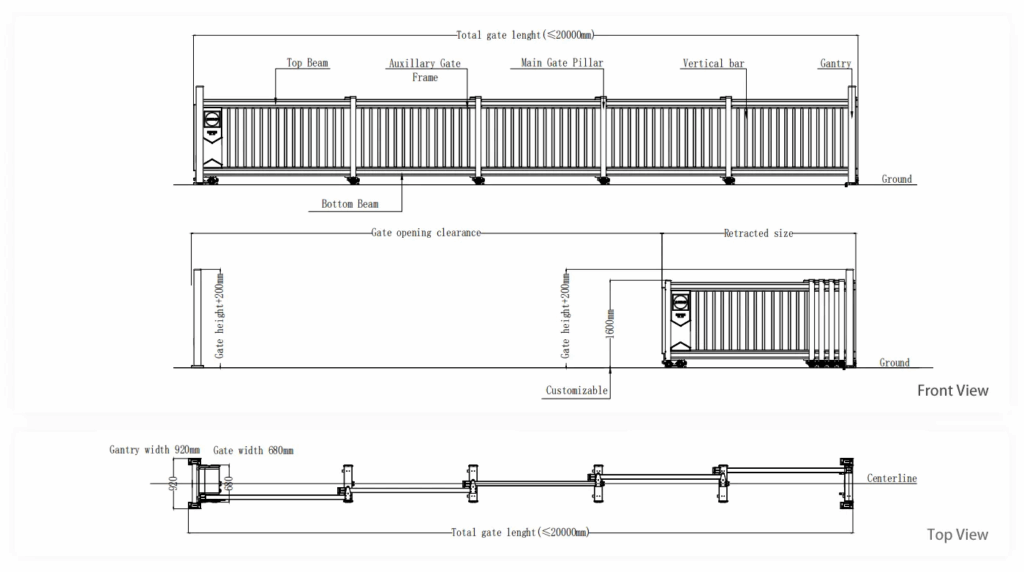

5.Product Diagram
All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.
Material Specification
| Name | Top Beam | Bottom Beam | Auxillary Gate Pillar | Main Gate Pillar | Auxillary Gate Frame | Vertical Bar | Gantry |
| Material | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 | 6063-T6 |
| Size mm | 140*83*Thickness 4.0 | 76*76*Thickness 1.0 | 100*100*Thickness 3.0 | 76*25*Thickness 1.5 | 47*37*Thickness 1.3 | 127*83*Thickness 2.5 | |
| Insulation Grade | B |
| Product Grade | A |
| Surface Treatment | Fluorocarbon powder coating |
| Product Color | CM-01 Gray (Color support customization) |
