Cantilever Sliding Gate System
Engineered for high-security commercial, industrial, and residential properties, our Cantilever Sliding Gate System delivers a heavy-duty, trackless access solution. Utilizing an advanced cantilever mechanism, it ensures smooth, all-weather operation without ground track installation—ideal for wide openings, high-traffic entrances, and uneven terrain.
🔧 Key Features & Advantages
1. Heavy-Duty Aluminum Structure
- 6005-T6 & 6063-T5 Structural Grade Aluminum: Built with premium architectural aluminum alloys for high tensile strength, ensuring rigid, zero-sag performance even across large openings.
- Lightweight & High Strength: 50% lighter than traditional steel gates, significantly reducing motor wear and extending drive-system lifespan without compromising structural integrity.
2. Advanced Trackless Cantilever System
- No Ground Track Required: Operates completely elevated above the driveway. Eliminates the need for ground trenching, concrete tracks, or surface modification.
- All-Weather Reliability: Smooth year-round operation unaffected by snow, ice, mud, gravel, or debris accumulation in the driveway path.
3. North American Architectural Grade Coating
- AkzoNobel Interpon Powder Coating: Finished with genuine AkzoNobel Interpon high-performance powder, providing elite aesthetic quality and extreme protection.
- AAMA 2604 Weathering Standard (ASTM G7): Validated by 5-year South Florida exposure testing ($\Delta E < 5.0$), resisting fading, severe UV radiation, and chalking.
- AAMA 2603 Corrosion Protection (ASTM B117): Withstands 1,500+ hours of continuous salt spray fog testing without blistering, film detachment, or substrate corrosion — ideal for harsh coastal or northern climates.
4. Low Maintenance & Easy Installation
Rust & Corrosion Free: Unlike traditional steel gates that require frequent repainting, our certified aluminum and coating system delivers virtually maintenance-free long-term performance.
Modular Bolt-Together Design: Engineered for straightforward field assembly and fast installation, cutting down on-site labor costs for contractors.

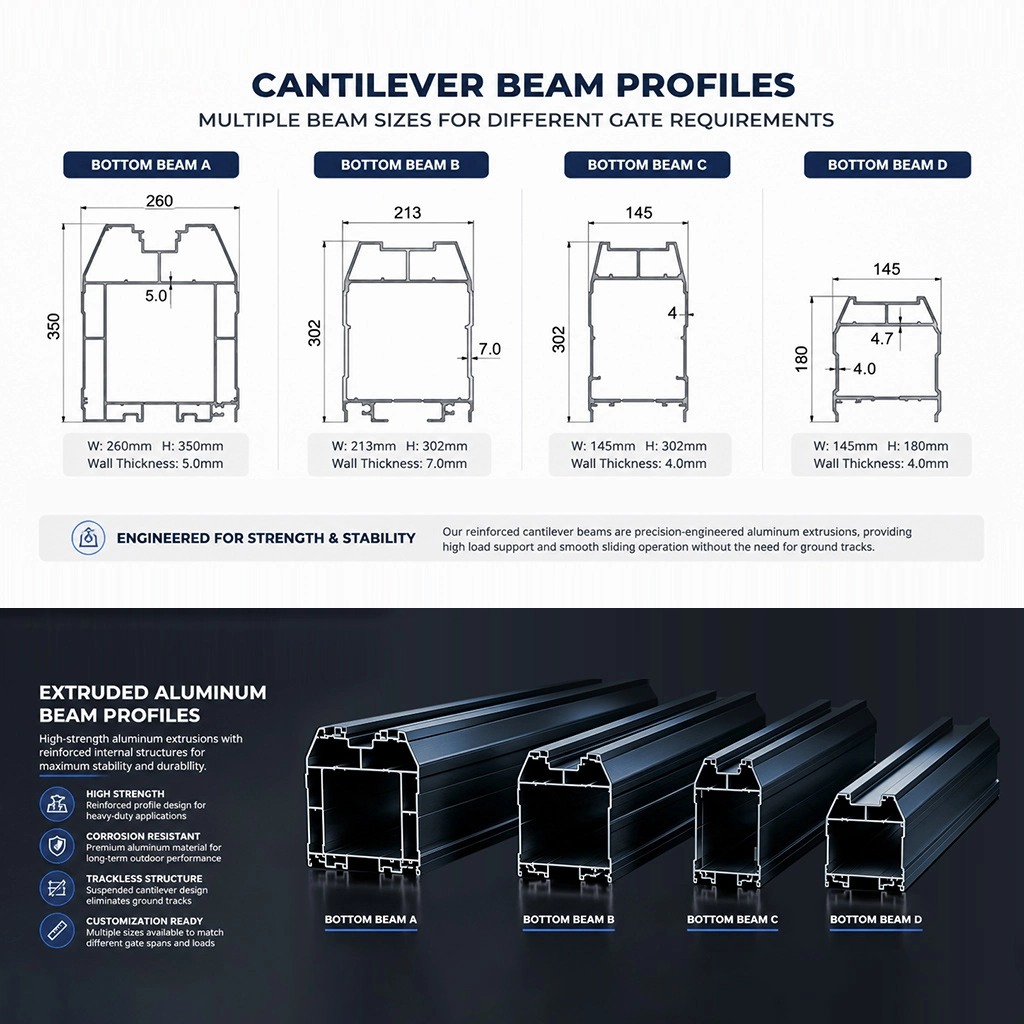

Heavy-Duty 6005-T6 Aluminum Beam Profiles
- Engineered for structural integrity and long-term durability, our bottom beams are extruded from high-strength 6005-T6 architectural aluminum alloy. To accommodate diverse site specifications and opening requirements—from luxury residential estates to extra-wide heavy industrial spans—we offer 4 distinct profile sizes (Profiles A–D).
- This versatile system ensures maximum rigidity, precise load support, and whisper-quiet trackless operation for any project scale.

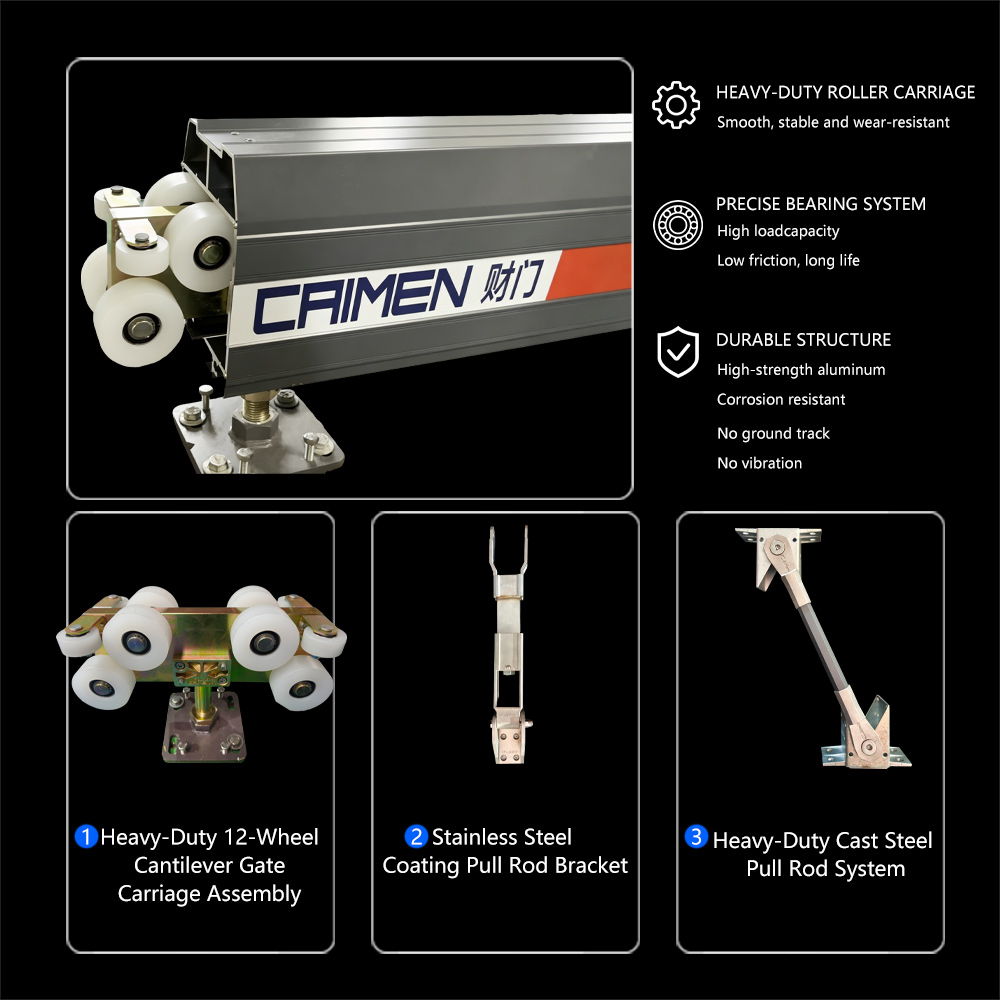

Heavy-Duty Carriage & Precision Hardware System
- 12-Wheel Multi-Directional Carriage: Top, bottom, and side rollers eliminate gate sagging and lateral wobble.
- Tenon-and-Mortise Modular Joints: Interlocking frame connection for high physical rigidity and quick part replacement.
- Cast Steel & Stainless Pull Rods: High-tensile steel brackets prevent structural loosening over wide spans.
- AkzoNobel Anti-Rust Finish: Architectural powder coating eliminates rust-bleeding and surface staining.
- Variable Frequency Drive: Smooth soft-start / soft-stop management for whisper-quiet, low-wear operation.

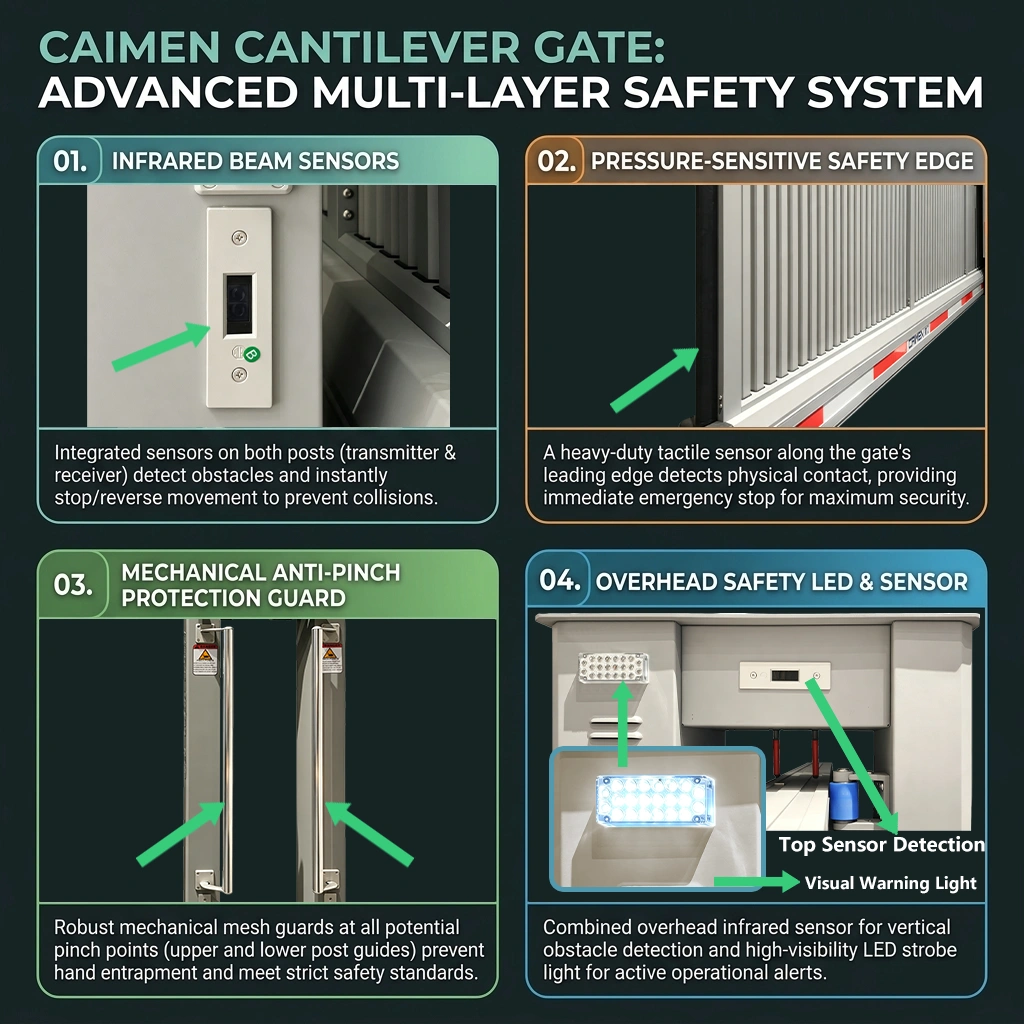

1. Infrared Anti-Climb & Anti-Entrapment
Active photoelectric sensors project invisible beam curtains across the entrance. If breached while the gate is operating, the system immediately triggers an alarm and locks movement to prevent unauthorized climbing or entry.
2. Auto-Reverse Anti-Collision System
High-sensitivity infrared sensors continuously monitor the driveway. If a vehicle, person, or object breaks the signal path during closing, the gate stops instantly and reverses to avoid collision.
3. Emergency Cut-Off Switch
Equipped with an accessible hardwired emergency stop mechanism. In critical situations, operators can instantly isolate main power to ensure immediate safety and manual override control.

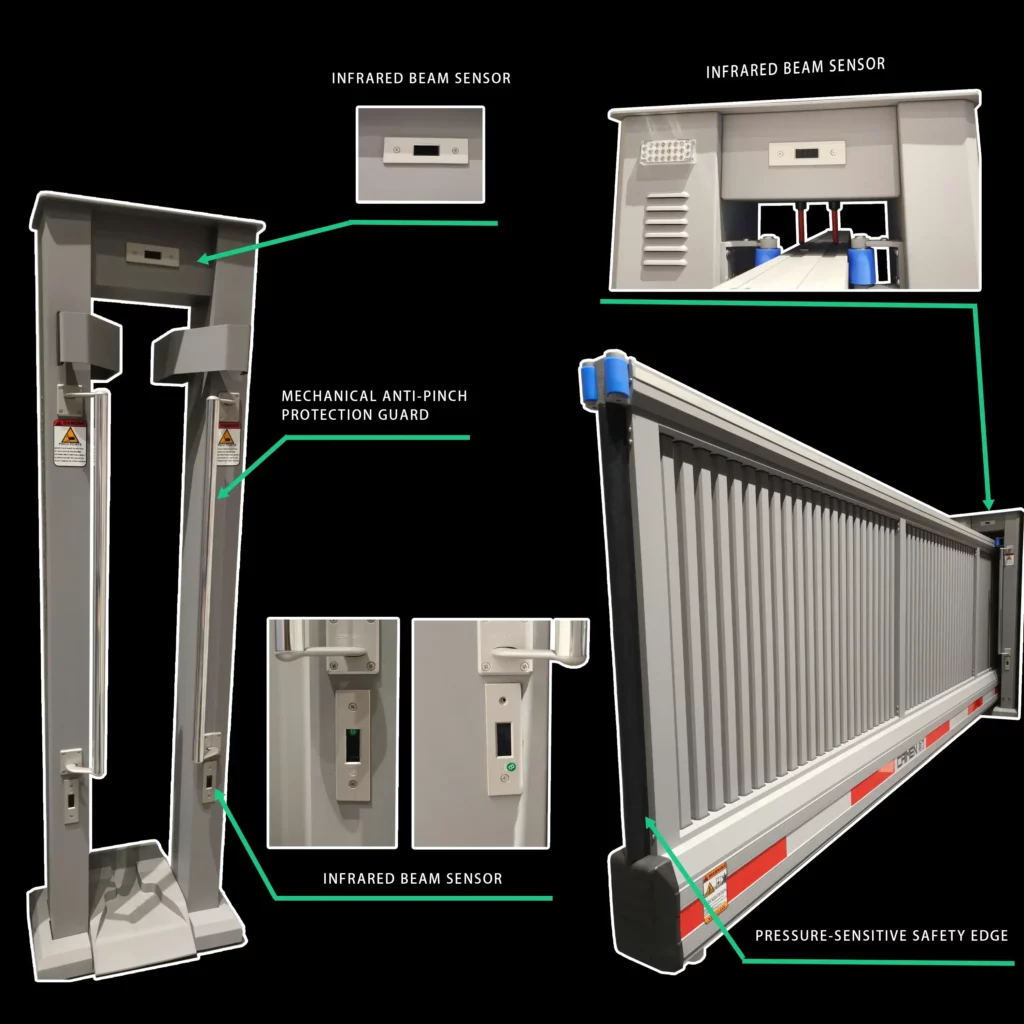

4. Pressure-Sensitive Safety Edge (Anti-Pinch)
Built-in weather-resistant rubber safety edges activate instantly upon minimal physical contact. If an obstruction touches the gate edge, movement ceases immediately to eliminate crushing or pinching hazards.
High-Speed & Global Power:
500W heavy-duty motor, 18-22 m/min gate speed, customizable for 110V / 220V (50/60Hz).
Smart VFD Drive:
Variable Frequency Drive with Soft Start/Stop eliminates inertia shock and extends gate lifespan.
Access Control Ready:
Wireless remote + Dry Contact Relay Signal for seamless RFID, LPR & Access Control integration.
Extreme Climate Rated:
Die-cast aluminum casing built for harsh cold/heat from -35°C to +70°C.
Triple Safety System:
Built-in Motor Self-Locking, Overload & Thermal Protection, plus Manual Clutch Release.
 |
 |
 |

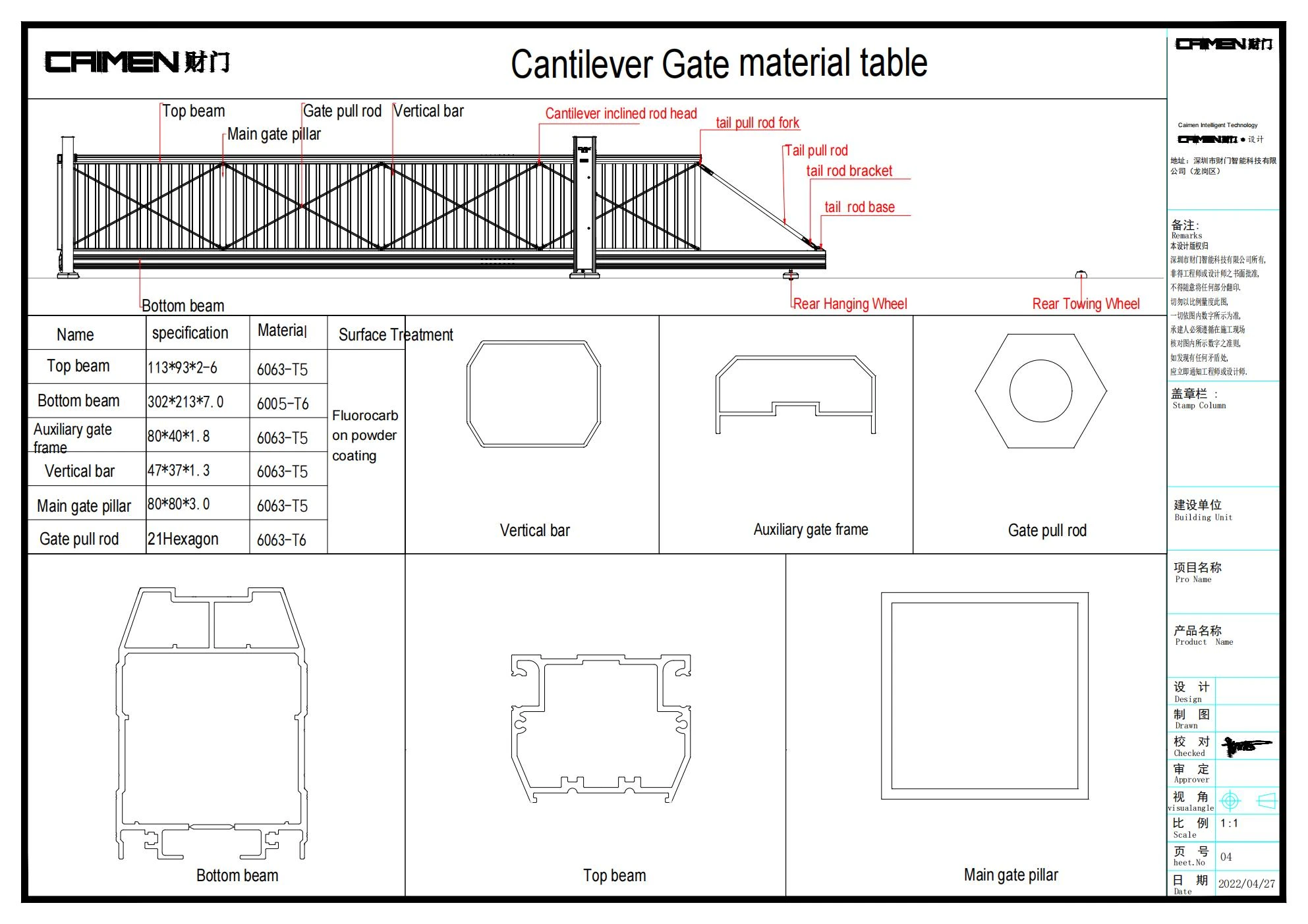

All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.
Technical Specifications of motor
| Gate Operating Speed | 18 – 22 m/min (VFD Adjustable) | Capacitance | 18 μF / 450V |
|---|---|---|---|
| Rated Power | 500 W | Drive Technology | Variable Frequency Drive (VFD) |
| Input Voltage | 110V / 220V AC (Customizable) | Control Interfaces | Remote Control & Dry Contact Relay Signal |
| Frequency | 50 Hz / 60 Hz | System Integration | Compatible with RFID, LPR & Access Control (optional) |
| Rated Current | 2.0 A | Operational Noise | < 65 dB |
| Motor Rotational Speed | 1350 RPM | Insulation Class | Class B |
